8 hours introduction to MapFish Framework 1.2¶

Warning

This document includes outdated information..

Welcome in the MapFish world ! First the architecture and components of the MapFish Framework are introduced.

Then, MapFish JavaScript Toolbox, MapFish Server and Tiling are presented with practical examples.

MapFish Framework¶

What is a framework ?¶

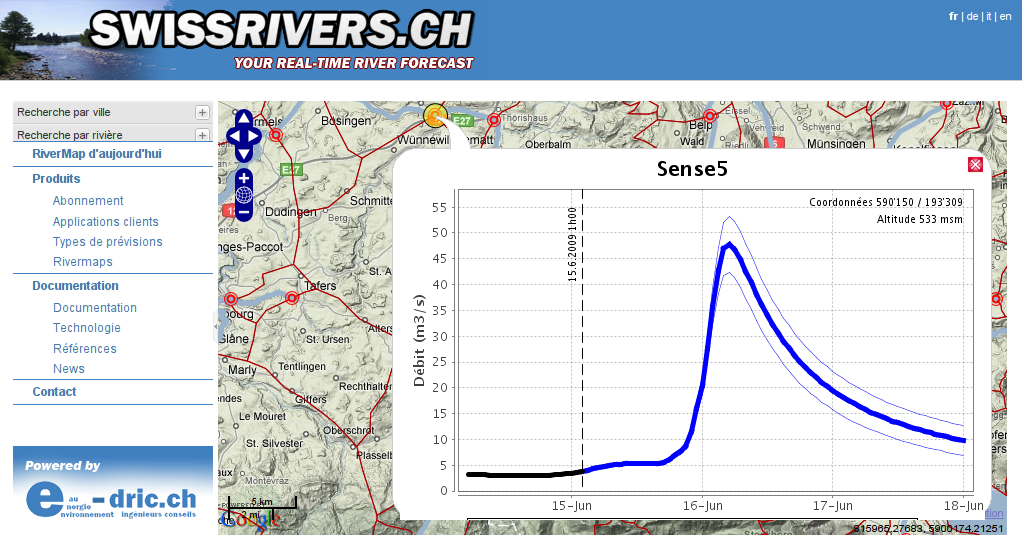

MapFish is a flexible and complete framework for building rich web-mapping applications. It emphasizes high productivity, and high-quality development. But, what is a framework ? From wikipedia : “A framework is a basic conceptual structure used to solve or address complex issues.”. The framework aims to alleviate the overhead associated with common activities performed in Web mapping development.

In that sense, MapFish Framework provides the technology for building web mapping applications. With MapFish JavaScript Toolbox technologies, the developer can create user interfaces and with MapFish Server technologies, it is possible to develop the necessary web services.

On the client side, JavaScript libraries are mainly used, on the server side, several languages can be used. Originally, Python components were used, but with the time, Java, Ruby and PHP components have also been developped. This shows the flexibility and openness of the framework.

Note

MapFish is cartographic server agnostic. It can be used with MapServer, GeoServer, MapGuide or whatever cartographic server that is able to communicate with open protocols like WMS or WFS.

Components of MapFish framework¶

Several Open Source technologies are used in MapFish Framework:

GeoExt: GeoExt is a JavaScript library providing the groundwork for creating web-mapping applications based on OpenLayers and ExtJS.

OpenLayers: OpenLayers makes it easy to put a dynamic map in any web page. It can display map tiles and markers loaded from any source.

ExtJS: Ext JS is a cross-browser JavaScript library for building rich internet applications.

Shapely: Shapely is a Python package for manipulation and analysis of 2D geospatial geometries.

SqlAlchemy: SQLAlchemy is the Python SQL toolkit and Object Relational Mapper that gives application developers the full power and flexibility of SQL.

GeoJSON: GeoJSON is a format for encoding a variety of geographic data structures.

Pylons: Pylons is a lightweight web framework emphasizing flexibility and rapid development.

Additionaly, the creation of MapFish applications will use the following Open Source Technologies:

TileCache: TileCache provides a Python-based WMS-C/TMS server, with pluggable caching mechanisms and rendering backends.

PostGIS: PostGIS adds support for geographic objects to the PostgreSQL object-relational database. In effect, PostGIS “spatially enables” the PostgreSQL server, allowing it to be used as a backend spatial database for geographic information systems (GIS).

OGR: The OGR Simple Features Library is a C++ open source library providing read and sometimes write access to a variety of vector file formats.

GDAL: is a translator library for raster geospatial data formats.

MapFish aggregates these components and ensure that they can work together.

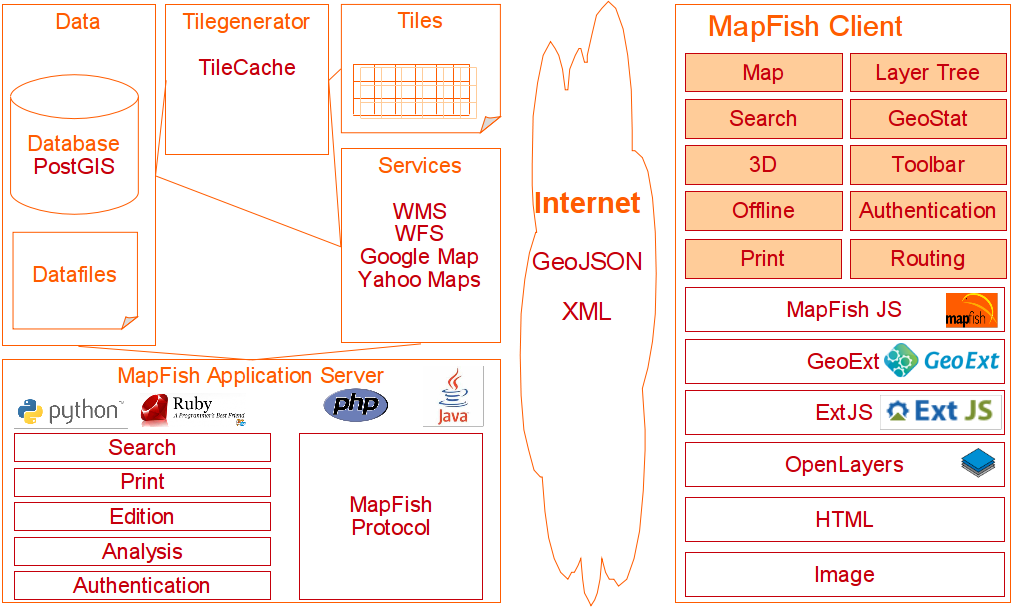

Architecture of MapFish applications¶

The main goal of the MapFish Framework is to simplfiy the developer’s life when building MapFish applications. The following schema describes the general architecture of MapFish applications:

On the server side, the data can be managed inside a database or as files. From these data, in order to improve the application performance, a tile generator can be used to cache the geographic content. The tile generation process is based on a cartographic server that is able to serve the tiles or on files (images, for example). The MapFish application server provides services like search, print or edit. Complex and custom data analysis can be developed with the technology provided by the MapFish framework.

Note

The MapFish Protocol is a RESTFull protocol for creating/reading/querying/updating/deleting features. The MapFish protocol defines a communication language between client and server part.

On the client side, four JavaScript libraries are used to allow the creation of advanced user interfaces. Some demos here:

MapPanel

LayerTree

Search

GeoStat

Toolbar

Print

Edit

Routing

... and all the live applications ;-)

Through internet the data are transferred as JSON/GeoJSON or XML/GML data flow. OGC or other web services can of course be used by the client applications.

Development of MapFish applications¶

The MapFish Framework provides the bricks to create web mapping applications. From these bricks, there are two main ways to create custom MapFish applications.

Application from scratch¶

In this case, the bricks of the framework are used to create a custom application.

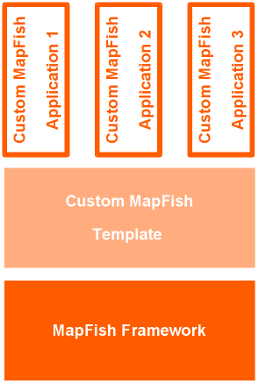

Application from template¶

In this case, the bricks of the framework are used to create a template. The template can contain for example the general layout of the application or some base layers. This template can be used several times to create custom applications. And, of course, custom code can be done for the specific applications.

OGC compliance¶

MapFish is compliant with the Open Geospatial Consortium standards. This is achieved through OpenLayers or GeoExt which support several OGC norms, like WMS, WFS, WMC, KML, GML etc..

MapFish Technologies¶

MapFish JavaScript Toolbox¶

MapFish JavaScript Toolbox is composed of four JavaScript libraries: ExtJS, OpenLayers, GeoExt and MapFish. The functionality of all these libraries will be highlighted with some example code.

ExtJS¶

Ext JS is a cross-browser JavaScript library for building rich internet applications. It provides a very large list of UI components.

Some editors can help to create ExtJS UI: GUI Builder or GUI Designer. To know more about this technology, you can follow the ExtJS tutorial.

Note

In order to play with ExtJS, it is needed to reference the ExtJS library and the associated css (more information here: Get Prepared with ExtJS). For simplicity, we have prepared an accessible build with CacheFly.

Then, simply add the following code in the html page:

Ext “Hello World”¶

Create your own html page with the following code extjs_hello_world.html. If you open it in a browser, you should get a message “Hello World! You have ExtJS configured correctly!”

Show code

Ext.Viewport¶

The Viewport renders itself to the document body, and automatically sizes itself to the size of the browser viewport and manages window resizing. There may only be one Viewport created in a page. Let’s have a look at the configuration of a viewport:

To test: extjs_viewport.html

Show code

<html>
<head>
  <meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1"/>
  <title id='title'>ExtJS Viewport</title>

  <script type="text/javascript" src="http://extjs.cachefly.net/builds/ext-cdn-771.js"></script>
  <link rel="stylesheet" type="text/css" href="http://extjs.cachefly.net/ext-2.2.1/resources/css/ext-all.css"/>

  <script type="text/javascript">
      Ext.onReady(function() {
          new Ext.Viewport({
              layout: 'border',
              items: [
                  {
                      region: 'north',
                      html: '<h1 class="x-panel-header">Page Title</h1>',
                      autoHeight: true,
                      border: false,
                      margins: '0 0 5 0'
                  },
                  {
                      region: 'west',
                      collapsible: true,
                      title: 'Navigation',
                      xtype: 'treepanel',
                      width: 200,
                      autoScroll: true,
                      split: true,
                      loader: new Ext.tree.TreeLoader(),
                      root: new Ext.tree.AsyncTreeNode({
                          expanded: true,
                          children: [
                              {
                                  text: 'Menu Option 1',
                                  leaf: true
                              },
                              {
                                  text: 'Menu Option 2',
                                  leaf: true
                              },
                              {
                                  text: 'Menu Option 3',
                                  leaf: true
                              }
                          ]
                      }),
                      rootVisible: false,
                      listeners: {
                          click: function(n) {
                              Ext.Msg.alert('Navigation Tree Click', 'You clicked: "' + n.attributes.text + '"');
                          }
                      }
                  },
                  {
                      region: 'center',
                      xtype: 'tabpanel',
                      items: {
                          title: 'Default Tab',
                          html: 'The first tab\'s content. Others may be added dynamically'
                      }
                  },
                  {
                      region: 'south',
                      title: 'Information',
                      collapsible: true,
                      html: 'Information goes here',
                      split: true,
                      height: 100,
                      minHeight: 100
                  }
              ]
          });
      }); //end onReady
  </script>

</head>
<body>
</body>
</html>

Ext.grid.GridPanel¶

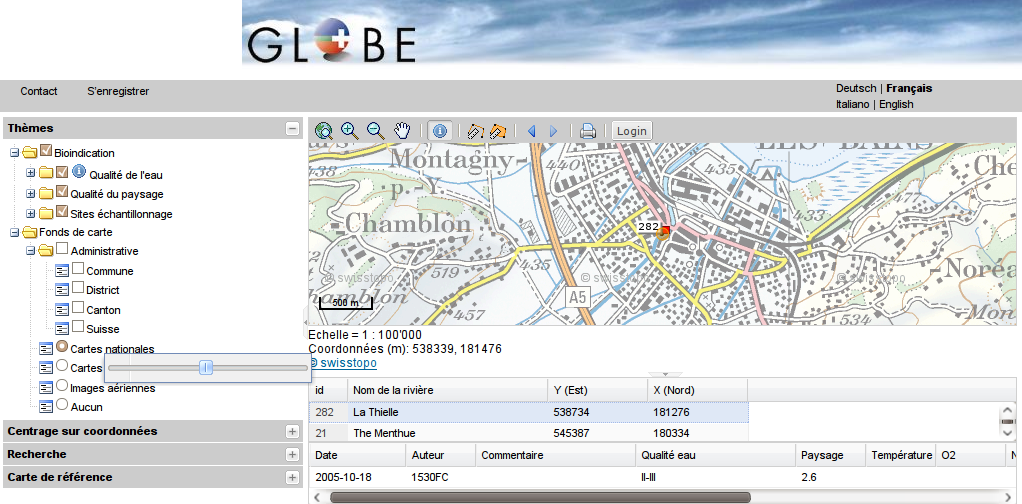

Globe application uses a grid panel:

OpenLayers¶

OpenLayers makes it easy to put a dynamic map in any web page. It can display map tiles and markers loaded from any source.

Have a look at the OpenLayers examples to see the power of this library.

Note

In order to play with OpenLayers, it is needed to reference the OpenLayers library.

Simply add the following code in the html page:

Map¶

Instances of OpenLayers.Map are interactive maps embedded in a web page.

To test: openlayers_map.html

Show code

GeoExt¶

GeoExt is a JavaScript library providing the groundwork for creating web-mapping applications based on OpenLayers and ExtJS.

Have a look at the GeoExt examples to see the power of this library.

Note

In order to play with GeoExt, it is needed to reference the OpenLayers, ExtJS and GeoExt library.

For GeoExt, simply add the following code in the html page:

GeoExt relies on features from OpenLayers 2.8. Until OpenLayers 2.8 is released, you can use the latest release candidate (link directly to http://openlayers.org/api/2.8-rc2/OpenLayers.js)

GeoExt.MapPanel¶

A GeoExt MapPanel is an OpenLayers map integrated into an ExtJS Panel.

To test: geoext_mappanel.html

Show code

GeoExt.Action¶

GeoExt provides the GeoExt.Action class for adaptating a control to an object that can be inserted in a toolbar or in a menu.

To test: geoext_action.html

Show code

<html>
<head>
 <title>GeoExt Action</title>

 <script type="text/javascript" src="http://extjs.cachefly.net/builds/ext-cdn-771.js"></script>
 <link rel="stylesheet" type="text/css" href="http://extjs.cachefly.net/ext-2.2.1/resources/css/ext-all.css"/>

 <script src="http://openlayers.org/api/2.8-rc2/OpenLayers.js"></script>

 <script type="text/javascript" src="http://dev.geoext.org/trunk/geoext/lib/GeoExt.js"></script>

 <script type="text/javascript">
     Ext.onReady(function() {
         var map = new OpenLayers.Map();
         var wms = new OpenLayers.Layer.WMS(
                 "bluemarble",
                 "http://sigma.openplans.org/geoserver/wms?",
         {layers: 'bluemarble'}
                 );
         var vector = new OpenLayers.Layer.Vector("vector");
         map.addLayers([wms, vector]);

         var ctrl, toolbarItems = [], action, actions = {};

         // ZoomToMaxExtent control, a "button" control
         action = new GeoExt.Action({
             control: new OpenLayers.Control.ZoomToMaxExtent(),
             map: map,
             text: "max extent"
         });
         actions["max_extent"] = action;
         toolbarItems.push(action);
         toolbarItems.push("-");

         // Navigation control and DrawFeature controls
         // in the same toggle group
         action = new GeoExt.Action({
             text: "nav",
             control: new OpenLayers.Control.Navigation(),
             map: map,
             // button options
             toggleGroup: "draw",
             allowDepress: false,
             pressed: true,
             // check item options
             group: "draw",
             checked: true
         });
         actions["nav"] = action;
         toolbarItems.push(action);

         action = new GeoExt.Action({
             text: "draw poly",
             control: new OpenLayers.Control.DrawFeature(
                     vector, OpenLayers.Handler.Polygon
                     ),
             map: map,
             // button options
             toggleGroup: "draw",
             allowDepress: false,
             // check item options
             group: "draw"
         });
         actions["draw_poly"] = action;
         toolbarItems.push(action);

         action = new GeoExt.Action({
             text: "draw line",
             control: new OpenLayers.Control.DrawFeature(
                     vector, OpenLayers.Handler.Path
                     ),
             map: map,
             // button options
             toggleGroup: "draw",
             allowDepress: false,
             // check item options
             group: "draw"
         });
         actions["draw_line"] = action;
         toolbarItems.push(action);
         toolbarItems.push("-");

         // SelectFeature control, a "toggle" control
         action = new GeoExt.Action({
             text: "select",
             control: new OpenLayers.Control.SelectFeature(vector, {
                 type: OpenLayers.Control.TYPE_TOGGLE,
                 hover: true
             }),
             map: map,
             // button options
             enableToggle: true
         });
         actions["select"] = action;
         toolbarItems.push(action);
         toolbarItems.push("-");

         // Navigation history - two "button" controls
         ctrl = new OpenLayers.Control.NavigationHistory();
         map.addControl(ctrl);

         action = new GeoExt.Action({
             text: "previous",
             control: ctrl.previous,
             disabled: true
         });
         actions["previous"] = action;
         toolbarItems.push(action);

         action = new GeoExt.Action({
             text: "next",
             control: ctrl.next,
             disabled: true
         });
         actions["next"] = action;
         toolbarItems.push(action);
         toolbarItems.push("->");

         // Reuse the GeoExt.Action objects created above
         // as menu items
         toolbarItems.push({
             text: "menu",
             menu: new Ext.menu.Menu({
                 items: [
                     // ZoomToMaxExtent
                     actions["max_extent"],
                     // Nav
                     new Ext.menu.CheckItem(actions["nav"]),
                     // Draw poly
                     new Ext.menu.CheckItem(actions["draw_poly"]),
                     // Draw line
                     new Ext.menu.CheckItem(actions["draw_line"]),
                     // Select control
                     new Ext.menu.CheckItem(actions["select"]),
                     // Navigation history control
                     actions["previous"],
                     actions["next"]
                 ]
             })
         });

         var mapPanel = new GeoExt.MapPanel({
             renderTo: "mappanel",
             height: 400,
             width: 600,
             map: map,
             center: new OpenLayers.LonLat(5, 45),
             zoom: 4,
             tbar: toolbarItems
         });
     });
 </script>

 <style type="text/css">
         /* work around an Ext bug that makes the rendering
            of menu items not as one would expect */
     .ext-ie .x-menu-item-icon {
         left: -24px;
     }

     .ext-strict .x-menu-item-icon {
         left: 3px;
     }

     .ext-ie6 .x-menu-item-icon {
         left: -24px;
     }

     .ext-ie7 .x-menu-item-icon {
         left: -24px;
     }
 </style>
</head>
<body>
<div id="mappanel"></div>
</body>

</html>

MapFish Javacript¶

MapFish JavaScript contains specific MapFish UI components that are not part of the other libraries.

Print¶

To test: basic_print.html

Show code

<!DOCTYPE html>
<html>
<head>
<title>Map printing with a simple form</title>
<META http-equiv="Content-Type" content="text/html; charset=UTF-8">
<link rel="stylesheet" type="text/css"
    href="http://extjs.cachefly.net/ext-2.2.1/resources/css/ext-all.css"/>
<link rel="stylesheet" type="text/css"
    href="http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/mapfish/mapfish.css"/>

<script type="text/javascript"
      src="http://openlayers.org/api/OpenLayers.js"></script>

<script type="text/javascript"
      src="http://extjs.cachefly.net/builds/ext-cdn-771.js"></script>

<script type="text/javascript" src="http://dev.geoext.org/trunk/geoext/lib/GeoExt.js"></script>

<script type="text/javascript">
// Because of a bug in Firefox 2 we need to specify the MapFish base path.
// See https://bugzilla.mozilla.org/show_bug.cgi?id=351282
var gMfLocation = "http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/mapfish/";
</script>
<script type="text/javascript" src="http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/mapfish/MapFish.js"></script>

<style type="text/css">
html, body {
  font: normal 12px verdana;
  margin: 0;
  padding: 0;
  border: 0 none;
  overflow: hidden;
  height: 100%;
}
</style>
<script type="text/javascript">
// reference local blank image
Ext.BLANK_IMAGE_URL = 'http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/ext/resources/images/default/s.gif';
Ext.onReady(function() {

  var map = new OpenLayers.Map();

  var wms = new OpenLayers.Layer.WMS("OpenLayers WMS",
          "http://labs.metacarta.com/wms/vmap0", {layers: 'basic'}, {buffer: 0});

  var layerOverrides={
      "OpenLayers WMS": {overview: true}
  };

  var printConfigUrl = mapfish.SERVER_BASE_URL + 'print/info.json';

  var toolbar = new mapfish.widgets.toolbar.Toolbar({
      map: map,
      configurable: false,
      items: [new mapfish.widgets.print.PrintAction({
          map: map,
          configUrl: printConfigUrl,
          overrides: layerOverrides
      })]
  });

  var viewport = new Ext.Viewport({
    layout:'border',
    items:[
      new Ext.BoxComponent({ // raw
        region: 'north',
        el: 'north',
        height: 32,
        margins: {left: 5,top: 5}
      }),
      {
        region: 'west',
        id: 'west-panel',
        title: 'West',
        split: true,
        width: 280,
        minSize: 175,
        maxSize: 400,
        collapsible: true,
        margins: '0 0 0 5',
        layout: 'accordion',
        defaults: {
          collapsed: true
        },
        layoutConfig:{
          animate: true,
          activeOnTop: false
        },
        items: [
          {
            xtype: 'print-simple',
            title: 'Print single page',
            bodyStyle: 'padding: 7px;',
            collapsed: false,
            formConfig: {
              labelWidth: 65,
              defaults: {
                width: 140,
                listWidth: 140
              },
              items: [
                {
                  xtype: 'textfield',
                  fieldLabel: OpenLayers.Lang.translate('mf.print.mapTitle'),
                  name: 'mapTitle',
                  value: 'Map title'
                },
                {
                  xtype: 'textarea',
                  fieldLabel: OpenLayers.Lang.translate('mf.print.comment'),
                  name: 'comment',
                  height: 100,
                  value: 'Some comments'
                }
              ]
            },
            border: false,
            map: map,
            configUrl: printConfigUrl,
            overrides: layerOverrides
          }
        ]
      },{
          region: 'center',
          title: 'Map',
          layout: 'fit',
          xtype: 'gx_mappanel',
          map: map,
          layers: [wms],
          tbar: toolbar,
          zoom: 3,
          center:new OpenLayers.LonLat(8.5, 0)
      }]
  });
});
</script>
</head>
<body>
<div id="west"></div>

 <div id="north">
  <p style="font-size:16pt;color:#15428B;font-weight:bold">MapFish example: print</p>
</div>
<div id="center"></div>
</body>
</html>

Recenter¶

To test: datafield.html

Show code

<!DOCTYPE html>
<html>
<head>
  <title>Recenter DataField</title>
  <link rel="stylesheet" type="text/css"
      href="http://extjs.cachefly.net/ext-2.2.1/resources/css/ext-all.css"/>
  <link rel="stylesheet" type="text/css"
      href="http://demo.mapfish.org/mapfishsample/trunk/mfbase/mapfish/mapfish.css"/>

  <script type="text/javascript"
        src="http://demo.mapfish.org/mapfishsample/trunk/mfbase/openlayers/lib/OpenLayers.js"></script>
  <script type="text/javascript"
        src="http://demo.mapfish.org/mapfishsample/trunk/mfbase/ext/adapter/ext/ext-base.js"></script>
  <script type="text/javascript"
        src="http://demo.mapfish.org/mapfishsample/trunk/mfbase/ext/ext-all-debug.js"></script>
  <script type="text/javascript"
        src="http://demo.mapfish.org/mapfishsample/trunk/mfbase/geoext/lib/GeoExt.js"></script>
  <script type="text/javascript">
    // Because of a bug in Firefox 2 we need to specify the MapFish base path.
    // See https://bugzilla.mozilla.org/show_bug.cgi?id=351282
    var gMfLocation = "http://demo.mapfish.org/mapfishsample/trunk/mfbase/mapfish/";
  </script>
  <script type="text/javascript"
        src="http://demo.mapfish.org/mapfishsample/trunk/mfbase/mapfish/MapFish.js"></script>
  <script type="text/javascript"
        src="http://demo.mapfish.org/mapfishsample/trunk/examples/examples.js"></script>

  <script type="text/javascript">
      Ext.onReady(function() {
          var map = new OpenLayers.Map();
          var layer = new OpenLayers.Layer.WMS(
              "bluemarble",
              "http://sigma.openplans.org/geoserver/wms?",
              {layers: 'bluemarble'}
          );
          map.addLayer(layer);

          var mapPanel = new GeoExt.MapPanel({
              title: "MapPanel",
              renderTo: "map",
              height: 400,
              width: 600,
              map: map,
              center: new OpenLayers.LonLat(5, 45),
              zoom: 4
          });

          var recenter = new mapfish.widgets.recenter.DataField({
              title: "Recenter",
              url: mapfish.SERVER_BASE_URL + "countries",
              map: map,
              fieldLabel: "Africa country",
              displayField: "country",
              renderTo: "recenter",
              height: 400,
              width: 250
          });
      });
  </script>
</head>

<body>
  <div id="map" style="float:left;"></div>
  <div id="recenter" style="float:left;"></div>
</body>
</html>

MapFish API¶

The goal of the MapFish API is to allow the integration of a MapFish application inside a web page or a CMS.

The SwitzerlandMobility project has an API:

<html>
<head>
 <title>Veloland API</title>
 <script type="text/javascript" src="http://map.schweizmobil.ch/api/api_merged.js"></script>
 <script type="text/javascript">
     function init() {

         // centering example map
         new SchweizmobilApi({
             land: 'wander',
             mapContainerId: 'mymap1',
             center: {
                 easting: 600000,
                 northing: 200000,
                 zoom: 20
             }
         });
     }
 </script>
</head>
<body onload="init()">
  <div id="mymap1" style="width:800px;height:600px;border:1px solid grey;float:left;margin:10px !important;"></div>
</body>
</html>

Live example of this API (copyright and privacy policy):

MapFish Permalink¶

A MapFish permalink is an hyperlink that will return the user to the current MapFish view and configuration. The URL parameters store the application state.

Permalink with centering on a city: http://map.veloland.ch?lang=en&p&gemeinde=249372

MapFish Server¶

MapFish Server is responsible for server side treatments and is composed of several modules which can be implemented in several languages such as Python, Java, Ruby, PHP or others.

Note

This chapter will be focused on the Python trunk. Python 2.5 has to be used. Other languages like Java, Ruby or PHP will be discussed here: MapFish Server in Java, Ruby or PHP. This introduction is done for computer with an Ubuntu distribution.

Data Storage¶

In MapFish server, the data are usually stored in a geospatial database (PostGIS, Oracle Spatial, SpatialLite for example) or as flat files (Shapefile, GeoTIFF, Mif/Mid etc..). In Python, OGR/GDAL functions can be used through a Python binding.

Load vector data in PostGIS¶

In order to load the countries file (countries.zip) in a PostGIS database (we assume PostGis database is installed), the following procedure can be follow:

Create a new database “intro”:

sudo su postgres
createdb -E UNICODE intro
createlang plpgsql intro
psql -d intro -f /usr/share/postgresql-8.3-postgis/lwpostgis.sql
psql -d intro -f /usr/share/postgresql-8.3-postgis/spatial_ref_sys.sql
psql -d intro -c "SELECT postgis_full_version()"
exit

The last query will inform you about the version of the installed PostGIS version.

Import the data in the “intro” database:

unzip countries.zip
sudo su postgres
shp2pgsql -W utf8 -s 4326 countries.shp  countries | psql -d intro
exit

And to check that everything is ok. Additionaly we need to grant the access to this table to user www-data in order to allow an access from MapFish server in a web environment:

sudo su postgres
psql intro
\d
select count(1) from countries;
GRANT ALL ON countries TO "www-data" ;
GRANT SELECT ON geometry_columns TO "www-data";
GRANT SELECT ON spatial_ref_sys TO "www-data";
\q
exit

Data Stylization¶

MapFish Server is not a cartographic server. For customer projects, a cartographic server is usually set up together with MapFish Server in order to diffuse the geographic data. With MapServer, the stylization and creation of WMS/WFS services is done through the configuration of the MapFile.

Data Access: MapFish REST Protocol¶

In order to access data, a REST architecture is used within MapFish Server. A protocol characterized this architecture and defines a common language for creating/reading/querying/updating/deleting features.

To read features, here are example URL’s. The answer is provided as GeoJSON flow:

Request: GET http://www.example.fr/features?lon=5&lat=50

Response: the features that contain point (5,50)

Request: GET http://www.example.fr/features?box=5,50,7,60

Response: the features within the bounding box (5,50,7,60)

Request: GET http://www.example.fr/features?maxfeatures=3

Response: a maximum of 3 features

A complete description of the protocol can be found here.

Generation of MapFish REST Protocol¶

It’s clear that, programmatically, the MapFish REST protocol is dependent of the user data. But, in order to simplify the development of web mapping applications, MapFish provides functions that can generate, based on a configuration file, the code for you.

More information on this in the MapFish Wiki.

More details about the generated code can be found in SQLAlchemy tutorial.

Install first the MapFish Framework: Installation.

Then, in order to create a MapFish protocol, follow theses steps:

source venv/bin/activate
paster create --template=mapfish intro sqlalchemy=true

Configure the connection to the PostGis database by editing development.ini:

sqlalchemy.url = postgres://www-data:www-data@localhost:5432/intro

You can test that the server is ready by starting:

paster serve development.ini --reload

And testing the URL http://localhost:5000

Configure the information about the countries layer in file layers.ini:

[countries]
singular=country
plural=countries
table=countries
epsg=4326
geomcolumn=the_geom

And let MapFish generates the code for you !:

paster mf-layer countries

Last thing: don’t forget to add the correct route in intro/config/routing.py (before map.connect(‘/{controller}/{action}’)), if root directory is where layers.ini and development.ini are.:

map.resource("country", "countries")

It’s now ok. You can start the server:

paster serve development.ini --reload

And use the MapFish Protocol:

http://localhost:5000/countries/1

view-source:http://localhost:5000/countries/1

Note

view-source is for for Firefox users

Get all the countries that contain point (5,50):

view-source:http://localhost:5000/countries?lon=5&lat=50

Get all the countries within the bounding box (5,50,7,60):

view-source:http://localhost:5000/countries?box=5,50,7,60

Get a maximum of 3 countries:

view-source:http://localhost:5000/countries?maxfeatures=3

Get the list of all countries.pays attribute, without geometries:

view-source:http://localhost:5000/countries?attrs=pays&no_geom=true

MapFish Template¶

MapFish uses the power of paster to let you easily create new MapFish applications. With paster, you can generate the code for your application based on a MapFish template:

paster create --template=mapfish intro sqlalchemy=true

In addition, you can create a template from your application in order to reuse it.

Additional Libraries for MapFish¶

The Python Package Index is a repository of software for the Python programming language. An huge amount of libraries (6000+ !) are referenced over there. MapFish can work together with the majority of them. Here is a listing of often uses libraries:

AuthKIT: An authentication and authorization toolkit for WSGI applications and frameworks

repoze.who: An identification and authentication framework for WSGI.

FormAlchemy: FormAlchemy greatly speeds development with SQLAlchemy mapped classes (models) in a HTML forms environment.

GDAL Python Binding: This Python package and extensions are a number of tools for programming and manipulating the GDAL Geospatial Data Abstraction Library for manipulating raster data and OGR for manipulating geospatial vector data.

Example: recenter tool with autocompletion¶

The creation of a recentering tool providing autocompletion capabilities implies two developments. On client side, a recentering widget is needed to manage the user input. This widget will communicate with a server side service: the MapFish protocol.

(To test: local_recenter.html and store it in intro/public and start it with http://127.0.0.1:5000/local_recenter.html):

Show code

<!DOCTYPE html>
<html>
<head>
  <title>Map recenter with autocompletion</title>
  <META http-equiv="Content-Type" content="text/html; charset=UTF-8">

  <link rel="stylesheet" type="text/css"
        href="http://extjs.cachefly.net/ext-2.2.1/resources/css/ext-all.css"/>
  <link rel="stylesheet" type="text/css"
        href="http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/mapfish/mapfish.css"/>

  <script type="text/javascript"
          src="http://openlayers.org/api/OpenLayers.js"></script>
  <script type="text/javascript"
          src="http://extjs.cachefly.net/builds/ext-cdn-771.js"></script>
  <script type="text/javascript"
          src="http://dev.geoext.org/trunk/geoext/lib/GeoExt.js"></script>

  <script type="text/javascript">
      // Because of a bug in Firefox 2 we need to specify the MapFish base path.
      // See https://bugzilla.mozilla.org/show_bug.cgi?id=351282
      var gMfLocation = "http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/mapfish/";
  </script>
  <script type="text/javascript"
          src="http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/mapfish/MapFish.js"></script>

  <style type="text/css">
      html, body {
          font: normal 12px verdana;
          margin: 0;
          padding: 0;
          border: 0 none;
          overflow: hidden;
          height: 100%;
      }
  </style>
  <script type="text/javascript">
      // reference local blank image
      Ext.BLANK_IMAGE_URL = 'http://www.mapfish.org/svn/mapfish/trunk/MapFish/client/mfbase/ext/resources/images/default/s.gif';
      Ext.onReady(function() {

          var map = new OpenLayers.Map();

          var wms = new OpenLayers.Layer.WMS("OpenLayers WMS",
                  "http://labs.metacarta.com/wms/vmap0",
          {layers: 'basic'},
          {buffer: 0}
                  );

          var viewport = new Ext.Viewport({
              layout:'border',
              items:[
                  new Ext.BoxComponent({ // raw
                      region: 'north',
                      el: 'north',
                      height: 32
                  }),
                  {
                      region: 'west',
                      id: 'west-panel',
                      title: 'West',
                      split: true,
                      width: 320,
                      minSize: 175,
                      maxSize: 400,
                      collapsible: true,
                      margins: '0 0 0 5',
                      layout: 'accordion',
                      defaults: {
                          collapsed: true
                      },
                      layoutConfig:{
                          animate: true,
                          activeOnTop: false
                      },
                      items: [
                          {
                              xtype: 'datafieldrecenter',
                              title: 'Recenter',
                              bodyStyle: 'padding: 7px;',
                              collapsed: false,
                              url: "/countries",
                              map: map,
                              fieldLabel: "Country name",
                              displayField: "pays"
                          }
                      ]
                  },{
                      region: 'center',
                      title: 'Map',
                      layout: 'fit',
                      xtype: 'gx_mappanel',
                      map: map,
                      layers: [wms],
                      center: new OpenLayers.LonLat(8.5, 0),
                      zoom: 3

                  }]
          });
      });
  </script>
</head>
<body>
<div id="west"></div>
<div id="north">
  <p style="font-size:16pt;color:#15428B;font-weight:bold">MapFish recenter</p>
</div>
</body>
</html>

Example: MapFish edition and authentication¶

Globe application uses the MapFish protocol to allow edition and have authentication capabilities.

MapFish Server in Java, Ruby or PHP¶

Java¶

MapFish contains two main Java components :

The print module: print documentation / print sample

A library for the management of geometries and the parsing/writing of GeoJSON

Ruby¶

The Mapfish REST protocol for Ruby is implemented as a plugin for the Ruby on Rails framework. MapFish Ruby documentation.

PHP¶

A Symfony MapFish Plug-in has been developped to easily develop MapFish application with PHP. This plug-in contains a GeoJSON parser and writer and a bridge to the MapFish print server. It uses Doctrine as ORM. The main goal of this plug-in is to create a MapFish protocol in a PHP environment.

Studio (BETA): MapFish Application generator¶

Studio is a web software used to administrate web mapping applications created from MapFish framework.

Note

Studio’s motto are “no development” and “no file edition”

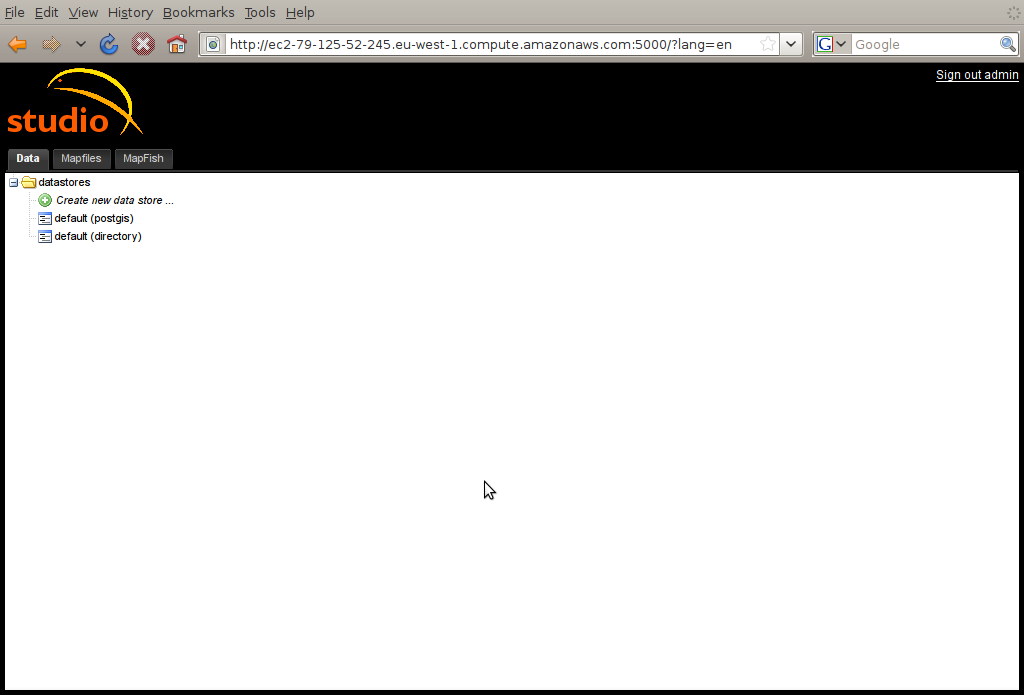

Studio UI is divided in three functional parts:

Data: for the management of data stored as file or in a PostGis database
MapFile: for the easy creation of MapFile and the definition of WMS / WFS services in MapServer
MapFish: for the creation and publication of MapFish website. It is possible to configure the following components:
- Layer (through WMS or mapFile) and Layer tree
- Site Header
- Tooltip
- Search
- Edition
- Print

More information: mapfish.tutorials.studio_user_guide.work_with_studio.

Studio uses a Pylon template to create the MapFish applications. This template can be customized.

Navigation

Table Of Contents

Previous topic

Next topic

This Page

Quick search

8 hours introduction to MapFish Framework 1.2¶

MapFish Framework¶

What is a framework ?¶

Components of MapFish framework¶

Architecture of MapFish applications¶

Development of MapFish applications¶

Application from scratch¶

Application from template¶

OGC compliance¶

MapFish Technologies¶

MapFish JavaScript Toolbox¶

ExtJS¶

Ext “Hello World”¶

Ext.Viewport¶

Ext.grid.GridPanel¶

OpenLayers¶

Map¶

Editing Toolbar¶

Popup¶

GeoExt¶

GeoExt.MapPanel¶

GeoExt.Action¶

MapFish Javacript¶

Print¶

Recenter¶

MapFish API¶

MapFish Permalink¶

MapFish Server¶

Data Storage¶

Load vector data in PostGIS¶

Data Stylization¶

Data Access: MapFish REST Protocol¶

Generation of MapFish REST Protocol¶

MapFish Template¶

Additional Libraries for MapFish¶

Example: recenter tool with autocompletion¶

Example: MapFish edition and authentication¶

MapFish Server in Java, Ruby or PHP¶

Java¶

Ruby¶

PHP¶

Studio (BETA): MapFish Application generator¶

Navigation
